Railway DC DC converter, Railway power supplies manufacturer
Cincon offers a wide range of EN50155 compliant railway DC-DC converters and railway power supplies from 8W-600W, which are specially designed for common railway applications of 24V, 36V, 48V, 72V, 96V, 110V nominal voltage and also suitable for distributed power architectures, telecommunications, battery operated equipment and industrial applications.
In addition, Cincon has more products which are EN50155 designed to meet for you to choose.
About Cincon Railway DC DC converter, Railway power supplies
For the railway applications, Cincon has a series of ultra-wide input range DC-DC converters to cover the various distributed voltages. One of the advantages of a wide input DC converter, is that rather than buying and stocking multiple products, one can cut cost and inventory by using a single product that supports the various voltage requirements in the railway system. The widest input range is up to 18:1 and the rest of wide input ranges are 12:1, 8:1. The power range of the ultra-wide input range DC-DC converters starts from 20W to 200W.
Cincon also provides a series of plug-in chassis-mount modules. The modularized Plug-in Cincon CMFC/CMFD series is a value-added series which could help you in solving the unpleasant EMC issues. Cincon also offers a detailed application note as the guideline tool to reduce your development time.
18:1 Input Range
|
|
Model
|
Power
|
Input Voltage
|
Output Voltage
|
Features
|
Dimensions (Inch)
|
|
NEW
|
EC7BW18
|
20W
|
8.5~160V
|
12V, 15V, 5V, ±12V, ±15V, ±24V
|
3KVac Isolation
UL62368-1
EN45545-2
EN50155 Compliant
|
2.00x1.00x0.40(DIP)
|
16:1 Input Range
|
|
Model
|
Power
|
Input Voltage
|
Output Voltage
|
Features
|
Dimensions (Inch)
|
|
NEW
|
EC7BW18-ECRT/EDRT
|
20W
|
10~160V
|
12V, 15V, 5V, ±12V, ±15V, ±24V
|
EN50155/ EN50121-3-2/ EN45545-2 Compliant
Low Inrush Current
Input Reverse Polarity Protection
EN50155 Class S3/ Class C2 Criteria A Without External Capacitor
|
4.45x2.33x0.85
(ECRT)
4.45x2.33x1.43
(EDRT)
|
12:1 Input Range
|
|
Model
|
Power
|
Input Voltage
|
Output Voltage
|
Features
|
Dimensions (Inch)
|
|
|
CQB50W12
|
50W
|
14~160V
|
5V, 12V, 24V, 48V
|
3KVdc Isolation
UL62368-1 & CB
EN45545-2
EN50155 Compliant
|
2.28×1.45x0.50
(Quarter Brick)
|
|
NEW
|
CQB50W12-72SXX-CMFC(D)
|
50W
|
14~160V
|
12V, 24V, 48V, 5V
|
Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant
|
4.60x2.40x1.26
(CMFC)
4.60x2.49x1.35
(CMFD)
|
|
NEW
|
CHB150W12
|
150W
|
14~160V
|
5V, 12V, 15V, 24V, 48V
|
3KVac Isolation
UL62368-1 & CB
EN45545-2
EN50155 Compliant
|
2.28×2.40x0.50
(Half Brick)
|
|
NEW
|
CHB200W12
|
200W
|
14~160V
|
12V, 15V, 24V, 48V
|
3KVac Isolation
UL62368-1 & CB
EN45545-2
EN50155 Compliant
|
2.28×2.40x0.50
(Half Brick)
|
8:1 Input Range
|
|
Model
|
Power
|
Input Voltage
|
Output Voltage
|
Features
|
Dimensions (Inch)
|
|
NEW
|
CQB75W8-36SXX-CMFC(D)
|
75W
|
9.5~75V
|
12V, 15V, 24V, 28V, 48V
|
Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant
|
4.60x2.40x1.46
(CMFC)
4.60x2.49x1.46
(CMFD)
|
|
NEW
|
CQB50W8-36SXX-CMFC(D)
|
50W
|
9.5~75V
|
12V, 15V, 24V, 28V, 48V
|
Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant
|
4.60x2.40x1.46
(CMFC)
4.60x2.49x1.46
(CMFD)
|
|
NEW
|
CQB50W8
|
50W
|
9~75V
|
12V, 15V, 24V, 28V, 48V
|
3KVac Isolation
UL62368 & CB
EN45545-2
EN50155 Compliant
|
2.28×1.45x0.50
(Quarter Brick)
|
|
NEW
|
CQB75W8
|
75W
|
9~75V
|
12V, 15V, 24V, 28V, 48V
|
3KVac Isolation
UL62368 & CB
EN45545-2
EN50155 Compliant
|
2.28×1.45x0.50
(Quarter Brick)
|
|
|
CHB150W8
|
150W
|
9~75V
|
12V, 15V, 24V, 28V, 48V
|
1.5KVDC Isolation
UL60950-1
|
2.28×2.40x0.50
(Half Brick)
|
4:1 Input Range
|
|
Model
|
Power
|
Input Voltage
|
Output Voltage
|
Features
|
Dimensions (Inch)
|
|
|
EC3AW
|
3W
|
18~72V, 9~36V
|
12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V
|
500/1.5K/3KVdc Isolation
|
1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)
|
|
|
EC3SAW
|
3W
|
18~75V, 9~36V
|
12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V
|
1.5KVDC Isolation
Input UVP
|
0.86x0.36x0.44(SIP8)
|
|
|
EC4AW
|
6W
|
18~72V, 9~36V
|
12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V
|
1.5K/3KVdc Isolation
|
1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)
|
|
|
EC4SAW
|
6W
|
18~75V, 9~36V
|
12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V
|
1.5KVDC Isolation
|
0.86x0.36x0.44(SIP8)
|
|
|
EC6AW
|
8W
|
18~75V, 9~36V
|
12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V
|
1.5KVdc Isolation
EN50155 Compliant
|
1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)
|
|
|
EC6AW-110
|
10W
|
43~160V
|
12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V
|
3KVdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant
|
1.25x0.80x0.50(DIP24)
|
|
NEW
|
EC5SAW
|
10W
|
18~75V, 9~36V
|
12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V
|
3KVDC Isolation
|
0.87x0.37x0.47(SIP8)
|
|
|
EC2SBW
|
10W
|
18~75V, 9~36V
|
12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V
|
1.5KVdc Isolation
|
1.00x1.00x0.40(DIP)
|
|
|
EC8AW
|
15W
|
18~75V, 9~36V
|
12V, 15V, 3.3V, 5V, ±12V, ±15V
|
1.5KVdc Isolation
EN55032 Class A
|
1.25x0.80x0.40(DIP24)
|
|
|
EC3SBW
|
15W
|
18~75V, 9~36V
|
12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V
|
1.5KVdc Isolation
|
1.00x1.00x0.40(DIP)
|
|
|
EC5BW
|
15W
|
18~75V, 9~36V
|
12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V
|
1.5KVdc Isolation
EN55032 Class A
|
2.00x1.00x0.40(DIP)
|
|
|
EC7BW
|
20W
|
18~75V, 9~36V
|
12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V
|
1.5KVdc Isolation
EN45545-2
EN50155 Compliant
|
2.00x1.00x0.40(DIP)
|
|
|
EC7BW-110
|
20W
|
43~160V
|
12V, 15V, 5V, ±12V, ±15V
|
3KVdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant
|
2.00x1.00x0.40(DIP)
|
|
|
EC1SC
|
20W
|
18~72V, 9~36V
|
12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V
|
EN55022 Class A
|
2.00×1.60×0.45(DIP)
|
|
|
EC4SBW
|
20W
|
18~75V, 9~36V
|
12V, 15V, 3.3V, 5V, ±12V, ±15V
|
1.5KVdc Isolation
|
1.00x1.00x0.40(DIP)
|
|
|
EC5SBW
|
30W
|
18~75V, 9~36V
|
12V, 15V, 3.3V, 5V, ±12V, ±15V
|
1.5KVdc Isolation
|
1.00x1.00x0.40(DIP)
|
|
|
EC9BW
|
30W
|
18~75V, 9~36V
|
12V, 15V, 3.3V, 5V, ±12V, ±15V
|
1.5KVdc Isolation
|
2.00x1.00x0.40(DIP)
|
|
|
ECLB40W-110
|
40W
|
43~160V
|
12V, 15V, 3.3V, 5V, ±12V, ±15V, ±24V
|
3KVdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant
|
2.05x1.20x0.40(DIP)
|
|
|
ECLB40W
|
40W
|
18~75V, 9~36V
|
12V, 15V, 3.3V, 5V, ±12V, ±15V
|
1.5KVdc Isolation
With Mounting Inserts
|
2.05x1.20x0.40(DIP)
|
|
|
CQE50W
|
50W
|
18~75V, 9~36V
|
12V, 15V, 24V, 3.3V, 48V, 5V
|
1.5KVDC Isolation
UL60950-1
|
2.28×1.45x0.50
(Quarter Brick)
|
|
|
CHB50W
|
50W
|
18~75V, 9~36V
|
12V, 15V, 24V, 28V, 3.3V, 48V, 5V
|
1.5KVDC Isolation
UL60950-1
|
2.28×2.40x0.50
(Half Brick)
|
|
|
CQB60W-110S
|
60W
|
43~160V
|
12V, 15V, 24V, 28V, 48V, 5V
|
3KVdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant
|
2.28×1.45x0.50
(Quarter Brick)
|
|
|
ECLB60W
|
60W
|
18~75V, 9~36V
|
12V, 15V, 3.3V, 5V, ±12V, ±15V
|
1.5KVdc Isolation
With Mounting Inserts
|
2.05x1.20x0.40(DIP)
|
|
NEW
|
ECLB75W
|
75W
|
18~75V, 9~36V
|
12V, 15V, 5V, ±12V, ±15V, ±24V
|
2.25KVdc Isolation
With Mounting Inserts
|
2.05x1.20x0.40(DIP)
|
|
|
CQB75W
|
75W
|
18~75V, 9~36V
|
12V, 15V, 24V, 3.3V, 5V
|
1.5KVDC Isolation
UL60950-1
|
2.28×1.45x0.50
(Quarter Brick)
|
|
|
CHB75W
|
75W
|
18~75V, 9~36V
|
12V, 15V, 24V, 28V, 3.3V, 48V, 5V
|
1.5KVDC Isolation
UL60950-1
|
2.28×2.40x0.50
(Half Brick)
|
|
NEW
|
CQB100W-110S
|
100W
|
43~160V
|
12V, 15V, 24V, 28V, 48V, 5V
|
3KVdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant
|
2.28×1.45x0.50
(Quarter Brick)
|
|
NEW
|
CQB100W-110SXX-CMFC(D)
|
100W
|
43~160V
|
5V, 12V, 15V, 24V, 28V, 48V
|
Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant
|
4.60x2.40x1.26
(CMFC)
4.60x2.49x1.35
(CMFD)
|
|
|
CQB100W
|
100W
|
18~75V, 9~36V
|
12V, 15V, 24V, 3.3V, 5V
|
1.5KVDC Isolation
UL60950-1
|
2.28×1.45x0.50
(Quarter Brick)
|
|
|
CHB100W
|
100W
|
18~75V, 9~36V
|
12V, 15V, 24V, 28V, 3.3V, 48V, 5V
|
1.5KVDC Isolation
UL60950-1
|
2.28×2.40x0.50
(Half Brick)
|
|
|
CQB150W-110S
|
150W
|
43~160V
|
3.3V, 5V, 12V, 15V, 24V, 28V, 48V
|
3KVdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant
|
2.28×1.45x0.50
(Quarter Brick)
|
|
|
CQB150W-110SXX-CMFC(D)
|
150W
|
43~160V
|
3.3V, 5V, 12V, 15V, 24V, 28V, 48V
|
Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant
|
4.60x2.40x1.26
(CMFC)
4.60x2.49x1.35
(CMFD)
|
|
|
CQB150W
|
150W
|
18~75V, 9~36V
|
12V, 15V, 24V, 28V, 48V, 5V
|
2250Vdc Isolation
UL62368-1 & CB
EN45545-2
EN50155 Compliant
|
2.28×1.45x0.50
(Quarter Brick)
|
|
|
CHB150W
|
150W
|
18~75V, 9~36V
|
12V, 15V, 24V, 28V, 3.3V, 48V, 5V
|
1.5KVDC Isolation
UL60950-1
|
2.28×2.40x0.52
(Half Brick)
|
|
NEW
|
CHB200W-110S
|
200W
|
43~160V
|
5V, 12V, 24V, 28V, 48V
|
3KVdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant
|
2.28×2.40x0.50
(Half Brick)
|
|
NEW
|
CHB200W-110SXX-CMFC(D)
|
200W
|
43~160V
|
5V, 12V, 24V, 28V, 48V
|
Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant
|
6.50x3.00x1.52
(CMFC)
6.50x3.09x1.57
(CMFD)
|
|
|
CHB200W
|
200W
|
10~36V, 18~75V
|
12V, 15V, 24V, 28V, 3.3V, 48V, 5V
|
1.5KVDC Isolation
UL60950-1
|
2.28×2.40x0.52
(Half Brick)
|
|
|
CHB300W-110S
|
300W
|
43~160V
|
12V, 24V, 28V, 3.3V, 48V, 5V
|
3KVdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant
|
2.28×2.40x0.50
(Half Brick)
|
|
NEW
|
CHB300W-110SXX-CMFC(D)
|
300W
|
43~160V
|
3.3V, 5V, 12V, 24V, 28V, 48V
|
Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant
|
6.50x3.00x1.52
(CMFC)
6.50x3.09x1.57
(CMFD)
|
|
|
CHB300W
|
300W
|
18~75V, 9~36V
|
12V, 15V, 24V, 28V, 48V, 5V
|
1.5KVDC Isolation
UL62368-1
|
2.28×2.40x0.50
(Half Brick)
|
|
|
CFB400W
|
400W
|
18~75V, 9~36V
|
12V, 24V, 28V, 48V, 5V
|
1.5KVDC Isolation
UL60950-1
|
4.60×2.40x0.50
(Full Brick)
|
|
NEW
|
CFB600W-110S
|
600W
|
43~160VDC
|
12V, 24V, 28V, 48V
|
2250Vdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant
|
4.60×2.40x0.50
(Full Brick)
|
|
NEW
|
CFB600W-110SXX CMFD
|
600W
|
43~160VDC
|
12V, 24V, 28V, 48V
|
Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant
|
9.45x4.33x1.65
|
2:1 Input Range
|
|
Model
|
Power
|
Input Voltage
|
Output Voltage
|
Features
|
Dimensions (Inch)
|
|
NEW
|

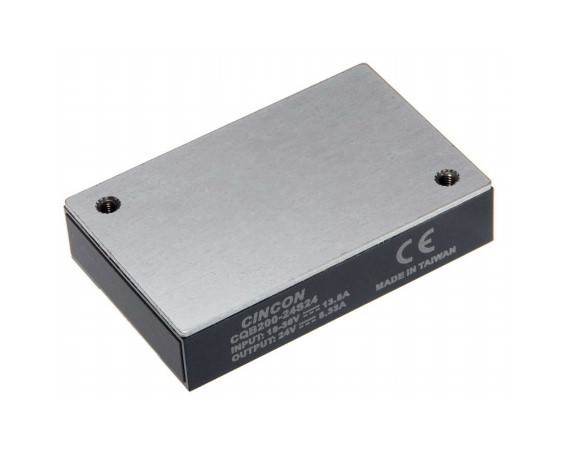

CQB200
|
200W
|
18~36V
|
24V, 28V
|
2250Vdc Isolation
UL62368-1
EN45545-2
|
2.28×1.45x0.50
(Quarter Brick)
|
|
|
CQB100-110S
|
100W
|
66~160V
|
12V, 24V, 3.3V, 5V
|
2250Vdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant
|
2.28×1.45x0.50
(Quarter Brick)
|
|
|
CHB100-110S
|
100W
|
66~160V
|
12V, 15V, 24V, 48V
|
3KVac Isolation
EN45545-2
EN50155 Compliant
|
2.28×2.40x0.50
(Half Brick)
|
|
|
CHB150-110S
|
150W
|
66~160V
|
12V, 24V, 5V
|
2250Vdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant
|
2.28×2.40x0.50
(Half Brick)
|
High Isolation 6KV
|
|
Model
|
Power
|
Input Voltage
|
Output Voltage
|
Features
|
Dimensions (Inch)
|
|
|
EC4AW-H6
|
6W
|
18~72VDC, 9~36VDC
|
12V, 5V, ±12V, ±15V
|
6KVdc Isolation
EN55032 Class A
5uA Leakage Current
|
1.25x0.80x0.40
(DIP24)
|
EMI Filter - PCB Mount
|
|
Model
|
Power
|
Input Voltage
|
Output Voltage
|
Features
|
Dimensions (Inch)
|
|
|
FM10/20
|
10-20A
|
75V
|
|
Input 75V Maximum
|
2.00x1.00x0.46
2.00x1.60x0.50
|
|
NEW
|
FM30R
|
30A
|
80V
|
|
Input 80V Maximum
|
2.28x1.45x0.50
|
|
NEW
|
FM05D
|
5A
|
200V
|
|
Input 200V Maximum
|
2.28x1.45x0.50
|
|
NEW
|
FM10D
|
10A
|
200V
|
|
Input 200V Maximum
|
2.28x2.40x0.97
|
|
